Layer 1KIT

MINI-CIRCUITS
RF DESIGNERS KITS

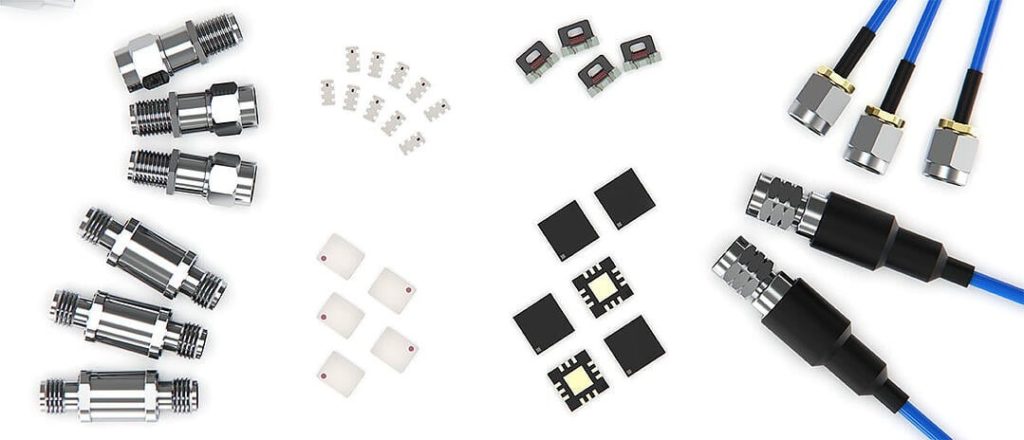

Mini-Circuits offers a wide range of plug-in, surface-mount and coaxial components RF Designers Kits to aid the engineer during the evaluation, design, and prototype stages as well as for testing in the laboratory.
Each kit contains a carefully-selected group of models that will enable the largest versatility of usage by the engineer.

As an example of Mini-Circuits quest to exceed our customer’s expectations, these kits are priced up to 40 percent lower than the cost of individual units and are available from stock. Click on the Kit Number for Specifications!

Models include RF Amplifiers, RF Attenuators, RF Cables, RF Couplers, RF Equalizers, RF Filters, RF Frequency Mixers, RF Phase Detectors and RF Power Splitters/Combiners, RF Transformers & Baluns.

All Mini-Circuits Kits include 1 to 10 different models totalizing 3 to 150 pieces each.

Mini-Circuits

NEW MINI-CIRCUITS RF DESIGNERS KITS

NEED TECHNICAL SUPPORT OR ASSISTANCE WITH PRODUCT SELECTION?

MCDI, Mini-Circuits Exclusive Representative in Israel, hosts a professional team of Application Engineers with decades of experience. Our Engineers are here to assist with identifying the products that are just right for you, advise on correct setups and solutions. They are just a phone call or an email away and also will be delighted to meet you at your location throughout Israel.

RF TEST ACCESSORIES CATALOG

Click to view the available kits

AMPLIFIERS KITS

Mini-Circuits RF Amplifiers Kits include a wide variety of models from DC to 10 GHz in Micro-X, SOT-89, modified QFN, connectorized, MCLP 5 X 6 mm, MCLP 1.42 X 1.18 mm, MCLP 3 X 3 mm SOT-343 packaging.
Each kits includes from 1 to 10 different models and a total of 3 to 100 pieces.

ATTENUATORS KITS


Mini-Circuits RF Attenuators Kits include a wide variety of models from DC to 18 GHz in SMA connectorized, N Connectorized, modified QFN, BNC connectorized, QFN, Die, Leaded SMT packaging.
Each kits includes from 1 to 10 different models and a total of 3 to 100 pieces.

Model NumberModel SeriesDescriptionPackageModels Included in Kit
wdt_IDTypeModel NumberModel SeriesDescriptionPackageModels Included in KitQty. Ea.Total Qty.Link
1Fixed Attenuators / TerminationsK2-BW1+BWDC to 18GHz_x000D_ 2 WattsSMA ConnectorizedBW-S3W2+, -S6W2+, -S10W2+26
2Fixed Attenuators / TerminationsK2-BW2+BWDC to 18GHz_x000D_ 2 WattsSMA ConnectorizedBW-S3W2+, -S6W2+, -S10W2+, -S20W2+, -S30W2+, -S40W2+16
3Fixed Attenuators / TerminationsK2-BW3+BWDC to 18GHz_x000D_ 2 WattsSMA ConnectorizedBW-S1W2+, -S2W2+, -S3W2+, -S4W2+, -S5W2+, -S6W2+, -S7W2+, -S8W2+, -S9W2+, -S10W2+110
4Fixed Attenuators / TerminationsK5-BW1+BWDC to 18GHz_x000D_ 5 WattsSMA ConnectorizedBW-S1W5+, -S2W5+, -S3W5+, -S4W5+, -S5W5+, -S6W5+, -S8W5+, -S10W5+18
5Fixed Attenuators / TerminationsK5-BW2+BWDC to 18GHz _x000D_ 5 Watts,SMA ConnectorizedBW-S3W5+, BW-S6W5+, BW-S10W5+14
6Fixed Attenuators / TerminationsK5N-BW3+BWDC to 18GHz_x000D_ 5 WattsN ConnectorizedBW-N3W5+, BW-N6W5+, BW-N10W5+14
7Fixed Attenuators / TerminationsK1-GAT+GATDC to 8 GHz _x000D_ 0.5 WattsModified QFNGAT-2+,-3+,-4+,-6+,-8+,-10+,-15+,-20+,-30+545
8Fixed Attenuators / TerminationsK2-GAT+GATDC to 8 GHz _x000D_ 0.5 WattsModified QFNGAT-3+,-6+,-10+,-15+,-20+525
9Fixed Attenuators / TerminationsK3-GAT+GATDC to 8 GHz _x000D_ 0.5 WattsModified QFNGAT-0+,-1+,-2+-3+,-4+,-5+,-6+,-7+,-8+,-9+,-10+,-12+,-15+,-20+,-30+575
10Fixed Attenuators / TerminationsK1-HAT+HATDC to 2GHz_x000D_ 1 WattsBNC ConnectorizedHAT-3+, -6+, -10+, -20+, -30+15
11Fixed Attenuators / TerminationsK2-HAT+HATDC to 2GHz_x000D_ 1 WattsBNC ConnectorizedHAT-1+, -2+, -3+, -4+, -5+, -6+, -7+, -8+, -9+, -10+110
12Fixed Attenuators / TerminationsK1-KAT+KATDC to 43.5GHz _x000D_ 2 WattsQFNKAT-3+, -6+, -10+, -15+, -20+1050
13Fixed Attenuators / TerminationsK2-KAT+KATDC to 43.5GHz _x000D_ 2 WattsQFNKAT-0+, -1+, -2+, -3+, -4+, -5+, -6+, -7+, -8+, -9+, -10+, -12+, -15+, -20+, -30+575
14Fixed Attenuators / TerminationsK2-KAT-DG+KATDC to 43.5GHz_x000D_ 2 Watts,DIEKAT-0+, -1+, -2+, -3+, -4+, -5+, -6+, -7+, -8+, -9+, -10+, -12+, -15+, -20+, -30+575
15Fixed Attenuators / TerminationsK1-LAT+LATDC to 2.5GHz _x000D_ 0.5 WattsLeaded SMTLAT-3+, -6+, -10+, -15+, -20+436
16Fixed Attenuators / TerminationsK1-PAT+GATDC to 7GHz _x000D_ 1 WattsQFNPAT-3+, -6+, -10+, -15+, -20+420
17Fixed Attenuators / TerminationsK2-PAT+GATDC to 7GHz _x000D_ 1 WattsQFNPAT-0+,-1+,-2+,-3+,-4+,-5+,-6+,-7+,-8+,-9+,-10+,-12+,-15+,-20+,-30+575
18Fixed Attenuators / TerminationsK1-RCAT+RCATDC to 20GHz _x000D_ 2 WattsQFNRCAT-00+, -03+, -06+, -10+, -15+, -20+1060
19Fixed Attenuators / TerminationsK1-VAT+VATDC to 6GHz _x000D_ 1 WattsSMA ConnectorizedVAT-3+, -6+, -10+, -20+, -30+15
20Fixed Attenuators / TerminationsK2-VAT+VATDC to 6GHz _x000D_ 1 WattsSMA ConnectorizedVAT-1+, -2+, -3+, -4+, -5+, -6+, -7+, -8+, -9+, -10+110
21Fixed Attenuators / TerminationsK3-VAT+VATDC to 6GHz _x000D_ 1 WattsSMA ConnectorizedVAT-3+, -6+, -10+26
22Fixed Attenuators / TerminationsK1-VAT2+VATDC to 6GHz_x000D_ 2 WattsSMA ConnectorizedVAT-3W2+, -6W2+, -10W2+, -20W2+, -30W2+15
23Fixed Attenuators / TerminationsK2-VAT2+VATDC to 6GHz_x000D_ 2 WattsSMA ConnectorizedVAT-1W2+, -2W2+, -3W2+, -4W2+, -5W2+, -6W2+, -7W2+, -8W2+, -9W2+, -10W2+110
24Fixed Attenuators / TerminationsK3-VAT2+VATDC to 6GHz_x000D_ 2 WattsSMA ConnectorizedVAT-3W2+, -6W2+, -10W2+26
25Fixed Attenuators / TerminationsK4-VAT2+VATDC to 6GHz_x000D_ 2 WattsSMA ConnectorizedVAT-3W2+, -6W2+, -10W2+, -20W2+14
26Fixed Attenuators / TerminationsK1-UNAT+UNATDC to 6GHz _x000D_ 0.5 and 1 WattsN ConnectorizedUNAT-3+, -6+, -10+, -15+, -20+210
27Fixed Attenuators / TerminationsK2-UNAT+UNATDC to 6GHz _x000D_ 0.5 and 1 WattsN ConnectorizedUNAT-1+, -2+, -3+, -4+, -5+, -6+, -7+, -8+, -9+, -10+, -15+, -20+, -30+113
28Fixed Attenuators / TerminationsK1-YAT-A+YAT-ADC to 18 GHz_x000D_ Up to 2 WattsQFNYAT-3A+, -6A+, -10A+, -15A+, -20A+1050
29Fixed Attenuators / TerminationsK2-YAT-A+YATDC to 18 GHz_x000D_ Up to 2 WattsQFNYAT-0A+, -1A+, -2A+, -3A+, -4A+, -5A+, -6A+, -7A+, -8A+, -9A+, -10A+, -12A+, -15A+, -20A+, -30A+10150
30Fixed Attenuators / TerminationsK1-QAT+QATDC to 50 GHz_x000D_ Up to 2 WattsQFNQAT-0+, -1+, -2+, -3+, -4+, -5+, -6+, -7+, -8+, -9+, -10+, -12+, -15+, -20+, -30+575

CABLES KITS


Mini-Circuits RF Cables Kits include a wide variety of models from DC to 50 GHz with SMA, SMP, SMP right-angle, SMA w/Bulkhead, SMA Right-Angle, 2.92 mm, 2.4 mm, SMPM connectors.
Each kits includes from 2 to 5 different models and a total of 10 to 50 pieces.

COUPLERS KITS


Mini-Circuits RF Couplers Kits include a wide variety of models from 5 MHz to 5.9 GHz, 50Ω & 75Ω in 0402, 0603, 0805, leadless SMT packaging. Each kits includes 5 different models and a total of 25 to 105 pieces.

EQUALIZERS KITS

Mini-Circuits RF Equalizers Kits include a wide variety of models from DC to 45 GHz, in QFN, Die, SMA connectorized, 2.92 mm connectorized packaging. Each kits includes from 1 to 5 different models and a total of 7 to 40 pieces.

FILTERS KITS

Mini-Circuits RF Filters Kits include a wide variety of models from DC to 14 GHz, in 0402, 0603, 0805, Leaded SMT, SMA connectorized, 1206, Wild Card, 603 packaging. Each kits includes from 1 to 10 different models and a total of 7 to 100 pieces.

FREQUENCY MIXERS KITS


Mini-Circuits RF Frequency Mixers Kits include a wide variety of models from 0.5 MHz to 15 GHz, in Leaded SMT, SMA connectorized, packaging. Each kits includes from 1 to 5 different models and a total of 3 to 50 pieces.

PHASE DETECTORS KITS



Mini-Circuits RF Phase Detectors Kits include a wide variety of models from 1 MHz to 400 MHz, in plug-in, leadless SMT packaging. Each kits includes 1 model and a total of 5 pieces.

POWER SPLITTERS / COMBINERS KITS

Mini-Circuits RF Power Splitters / Combiners Kits include a wide variety of models from 0.5 MHz to 12.6 GHz, in Leaded SMT, SMA connectorized, 1206, 805 packaging. Each kits includes from 1 to 7 different models and a total of 7 to 35 pieces.

TRANSFORMERS & BALUNS KITS



Mini-Circuits RF Transformers & Baluns Kits include a wide variety of models from 0.01 MHz to 8 GHz, in 0402, 0603, 0805, leaded SMT, 1206, 805, 603, leadless SMT packaging. Each kits includes from 2 to 10 different models and a total of 10 to 150 pieces.
