RF POWER SPLITTERS / DIVIDERS / COMBINERS

DC TO 65 GHZ

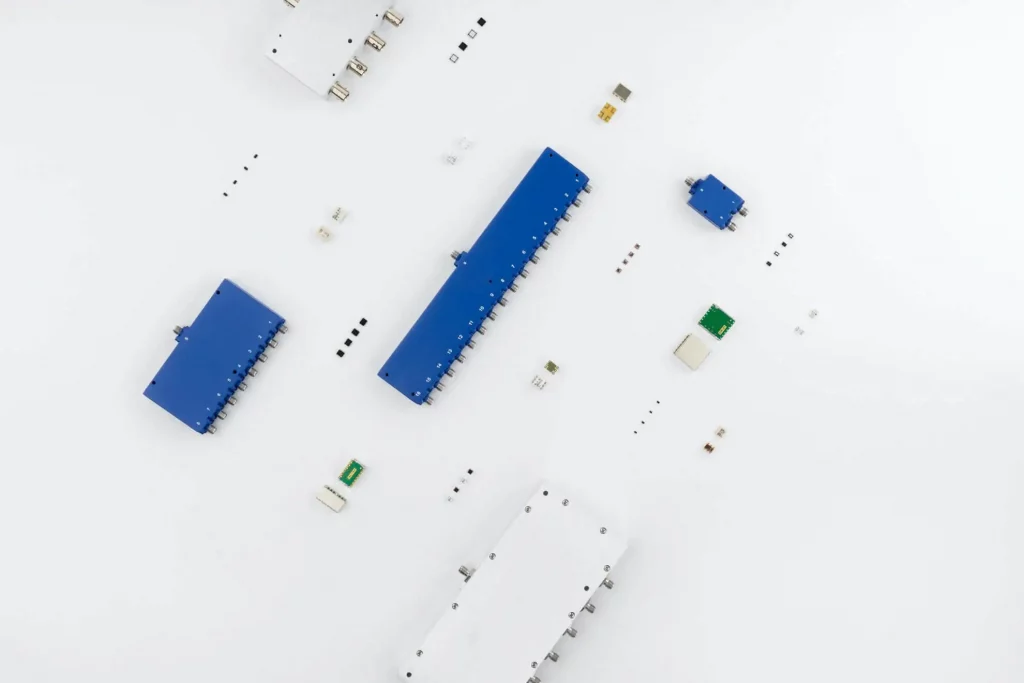

RF Power Splitters / Dividers / Combiners, 2-Way, 3-way, 4-way, 6-way, 8-way and up to 24-way models for 50 Ohm and 75 Ohm systems from DC to 65 GHz!

Coaxial, surface mount, and MMIC die formats available
SMA, N-Type, F-Type, BNC, 2.4mm and 2.92mm connectors
DC passing and DC blocking
Over 500 models in stock!

NEW RF POWER SPLITTERS / DIVIDERS / COMBINERS

Power Splitters/RF Power Combiners

EP3-19+

Mini-Circuits’ EP3-19+ is a MMIC 3-way 0° splitter/combiner designed for

Power Splitters/RF Power Combiners

SCW-2-722+

Mini-Circuits new LTCC 0° Power Splitter SCW-2-722+, offers industry leading

Power Splitters/RF Power Combiners

SCW-2-482+

Mini-Circuits new LTCC 0° Power Splitter SCW-2-482+, offers industry leading

NEED TECHNICAL SUPPORT OR ASSISTANCE WITH PRODUCT SELECTION?

MCDI, Mini-Circuits Exclusive Representative in Israel, hosts a professional team of Application Engineers with decades of experience. Our Engineers are here to assist with identifying the products that are just right for you, advise on correct setups and solutions. They are just a phone call or an email away and also will be delighted to meet you at your location throughout Israel.

GET TECHNICAL SUPPORT

RF POWER SPLITTERS / DIVIDERS / COMBINERS CATALOG

Please use the below filters to narrow down your search according to your required parameters.

You may also sort each column (alphabetic or numeric) by clicking on their header.

id	P/N	No. Ways	F Low (MHz)	F High (MHz)	Isolation (dB), Typ.	Insertion Loss (dB)	Phase Unbalance (deg)	amplitude_unbalance	Amplitude Unbalance (dB)	Technology	Case Style
id	P/N	No. Ways	F Low (MHz)	F High (MHz)	Isolation (dB), Typ.	Insertion Loss (dB)	Phase Unbalance (deg)	amplitude_unbalance	Amplitude Unbalance (dB)	Technology	Case Style	Datasheet	LINK
1	AD3PS-1+	3	1.00	300	35	0.40	4	0.30	0.50	Core & Wire	CJ725 LxWxH 0.385x0.397x0.215
2	AD4PS-1+	4	1.00	500	30	0.50	5	0.50	0.50	Core & Wire	CJ725 LxWxH 0.385x0.397x0.215
3	AD5PS-1+	5	1.00	400	25	0.30	6	0.40	0.50	Core & Wire	CJ725 LxWxH 0.385x0.397x0.215
4	AD6PS-1+	6	2.00	250	30	0.20	6	0.40	0.50	Core & Wire	CJ725 LxWxH 0.385x0.397x0.215
5	ADP-2-1+	2	0.50	400	25	0.30	2	0.20	0.50	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
6	ADP-2-1W	2	1.00	650	30	0.25	2	0.20	2.00	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
7	ADP-2-1W+	2	1.00	650	30	0.25	2	0.20	2.00	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
8	ADP-2-4	2	10.00	1,000	23	0.40	3	0.20	1.00	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
9	ADP-2-4+	2	10.00	1,000	23	0.40	3	0.20	1.00	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
10	ADP-2-9+	2	200.00	900	27	0.40	2	0.30	0.50	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
11	ADP-2-10	2	5.00	1,000	23	0.40	2	0.20	0.50	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
12	ADP-2-10+	2	5.00	1,000	23	0.40	2	0.20	0.50	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
13	ADP-2-10-75	2	50.00	1,000	24	0.70	2	0.20	0.50	Core & Wire	CD542 LxWxH 0.31x0.27x0.11
14	ADP-2-10-75+	2	50.00	1,000	24	0.70	2	0.20	0.50	Core & Wire	CD542 LxWxH 0.31x0.27x0.11
15	ADP-2-10-75M+	2	5.00	1,200	28	0.70	4	0.30	1.00	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
16	ADP-2-10W-75	2	5.00	1,000	23	0.30	3	0.20	0.50	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
17	ADP-2-10W-75+	2	5.00	1,000	23	0.30	3	0.20	0.50	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
18	ADP-2-20 (+)	2	20.00	2,000	18	0.70	3	0.30	1.00	Core & Wire	CD542 LxWxH 0.31x0.27x0.11
19	ADP-2-20-75+	2	5.00	2,000	16	0.50	4	0.30	0.50	Core & Wire	CD542 LxWxH 0.31x0.27x0.11
20	ADP-2-122-75+	2	5.00	1,250	22	0.90	2	0.20	0.50	Core & Wire	CD636 LxWxH 0.31x0.27x0.16
21	BP2C	2	810.00	960	25	0.60	3	0.20	1.50	MMIC	XX211 LxWxH 0.25x0.22x0.08
22	BP2C+	2	810.00	960	25	0.40	3	0.20	1.50	MMIC	XX211 LxWxH 0.25x0.22x0.08
23	ADP-2-20	2	20.00	2,000	18	0.70	3	0.30	1.00	Core & Wire	CD542 LxWxH 0.31x0.27x0.11
24	ADP-2-20+	2	20.00	2,000	18	0.70	3	0.30	1.00	Core & Wire	CD542 LxWxH 0.31x0.27x0.11
25	BP2C1+	2	650.00	1,100	20	0.40	3	0.20	1.50	MMIC	XX211 LxWxH 0.25x0.22x0.08
