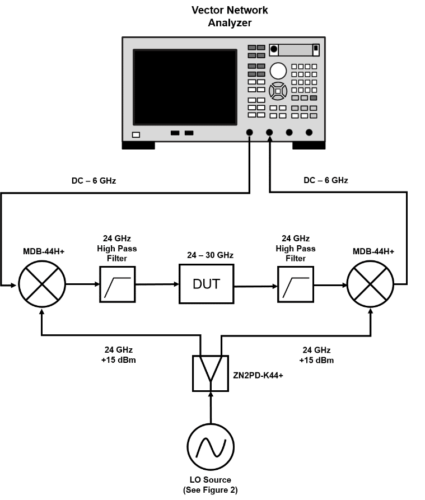

Mini-Circuits offers an extensive selection of mechanical switch modules and integrated systems for signal routing in your test setup. Controlled via USB or Ethernet, options range from compact, benchtop devices to complex, integrated switch networks in a self-contained rack-mount housing. Our broad selection of high-reliability SPDT, SP4T, SP6T and SP8T electromechanical switches in stock allows us to develop affordable custom solutions with very fast turnaround.
Best viewed on desktop.
Please use the below filters to narrow down your search according to your required parameters.
You may also sort each column (alphabetic or numeric) by clicking on their header.
| wdt_ID | P/N | Type | Termination | # of Switches | F. Low (GHz) | F. High (GHz) | Ins. Loss (dB), Typ. | Isolation (dB), Typ. | RF Power (W), Max. | Case Style | Control Interfaces | Link |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | RCMX-2SP6T-E67 | SP6T Latching | Terminated | 2 | DC | 67.00 | 1.50 | 70 | 1.00 | BBY3749 | USB & Ethernet | |
| 2 | RCMX-2SP4T-E53 | SP4T | Terminated | 2 | DC | 52.50 | 0.90 | 70 | 3.00 | BBY3749 | USB & Ethernet | |
| 3 | RC-1SP4T-50 | SP4T | Terminated | 1 | DC | 50.00 | 0.40 | 75 | 3.00 | MR2935 | USB & Ethernet | |
| 4 | RC-1SP6T-50 | SP6T | Terminated | 1 | DC | 50.00 | 0.40 | 75 | 3.00 | PF2909 | USB & Ethernet | |
| 5 | RC-2MTS-50 | DPDT | Transfer | 2 | DC | 50.00 | 0.80 | 65 | 3.00 | SH3109 | USB & Ethernet | |
| 6 | RC-2SP4T-50 | SP4T | Terminated | 2 | DC | 50.00 | 0.40 | 75 | 3.00 | MR2616 | USB & Ethernet | |
| 7 | RC-2SP6T-50 | SP6T | Terminated | 2 | DC | 50.00 | 0.40 | 75 | 3.00 | PF2675 | USB & Ethernet | |
| 8 | RC-2SPDT-50 | SPDT | Unterminated | 2 | DC | 50.00 | 0.40 | 80 | 3.00 | LM3149 | USB & Ethernet | |
| 9 | RC-3MTS-50 | DPDT | Transfer | 3 | DC | 50.00 | 0.80 | 65 | 3.00 | SH3143 | USB & Ethernet | |
| 10 | RC-4SPDT-50 | SPDT | Unterminated | 4 | DC | 50.00 | 0.40 | 80 | 3.00 | LM3149 | USB & Ethernet | |
| 11 | RC-8SPDT-50 | SPDT | Unterminated | 8 | DC | 50.00 | 0.40 | 80 | 3.00 | LM3238 | USB & Ethernet | |
| 12 | RCMX-2SP8T-E43 | SP8T | Terminated | 2 | DC | 42.50 | 1.20 | 75 | 5.00 | BBY3749 | USB & Ethernet | |
| 13 | RC-1SP4T-40 | SP4T | Terminated | 1 | DC | 40.00 | 0.30 | 80 | 5.00 | MR2935 | USB & Ethernet | |
| 14 | RC-1SP6T-40 | SP6T | Terminated | 1 | DC | 40.00 | 0.40 | 80 | 5.00 | PF2909 | USB & Ethernet | |
| 15 | RC-2MTS-40 | DPDT | Transfer | 2 | DC | 40.00 | 0.40 | 70 | 5.00 | SH3109 | USB & Ethernet | |
| 16 | RC-2SP4T-40 | SP4T | Terminated | 2 | DC | 40.00 | 0.30 | 80 | 5.00 | MR2616 | USB & Ethernet | |
| 17 | RC-2SP6T-40 | SP6T | Terminated | 2 | DC | 40.00 | 0.40 | 80 | 5.00 | PF2675 | USB & Ethernet | |
| 18 | RC-2SP6T-40R | SP6T | Unterminated | 2 | DC | 40.00 | 0.40 | 80 | 5.00 | PF3290 | USB & Ethernet | |
| 19 | RC-2SPDT-40 | SPDT | Unterminated | 2 | DC | 40.00 | 0.60 | 65 | 5.00 | LM3149 | USB & Ethernet | |
| 20 | RC-2SPDT-A40 | SPDT | Terminated | 2 | DC | 40.00 | 0.60 | 65 | 5.00 | LM1849 | USB & Ethernet | |
| 21 | RC-3MTS-40 | DPDT | Transfer | 3 | DC | 40.00 | 0.50 | 70 | 5.00 | SH3143 | USB & Ethernet | |
| 22 | RC-4SPDT-40 | SPDT | Unterminated | 4 | DC | 40.00 | 0.60 | 65 | 5.00 | LM3149 | USB & Ethernet | |
| 23 | RC-4SPDT-A40 | SPDT | Terminated | 4 | DC | 40.00 | 0.60 | 65 | 5.00 | LM1851 | USB & Ethernet | |
| 24 | RC-8SPDT-A40 | SPDT | Terminated | 8 | DC | 40.00 | 0.60 | 65 | 5.00 | LM1852 | USB & Ethernet | |
| 25 | RCM-1SP8T-40 | SP8T | Terminated | 1 | DC | 40.00 | 0.70 | 70 | 1.00 | UV2068 | USB & Ethernet | |
| 26 | RCM-2SP8T-40 | SP8T | Terminated | 2 | DC | 40.00 | 0.70 | 70 | 1.00 | UV2068 | USB & Ethernet | |
| 27 | RCMX-2SP8T-E33 | SP8T | Terminated | 2 | DC | 32.50 | 1.10 | 75 | 5.00 | BBY3749 | USB & Ethernet | |
| 28 | RC-1SP4T-26 | SP4T | Terminated | 1 | DC | 26.50 | 0.20 | 80 | 5.00 | MR2935 | USB & Ethernet | |
| 29 | RC-1SP6T-26 | SP6T | Terminated | 1 | DC | 26.50 | 0.25 | 90 | 5.00 | PF2909 | USB & Ethernet | |
| 30 | RC-1SPDT-A26 | SPDT | Terminated | 1 | DC | 26.50 | 0.60 | 65 | 20.00 | LM1848 | USB & Ethernet | |
| 31 | RC-2MTS-26 | DPDT | Transfer | 2 | DC | 26.50 | 0.30 | 75 | 5.00 | SH3109 | USB & Ethernet | |
| 32 | RC-2SP4T-26 | SP4T | Terminated | 2 | DC | 26.50 | 0.20 | 80 | 5.00 | MR2616 | USB & Ethernet | |
| 33 | RC-2SP6T-26 | SP6T | Terminated | 2 | DC | 26.50 | 0.25 | 90 | 5.00 | PF2675 | USB & Ethernet | |
| 34 | RC-2SPDT-A26 | SPDT | Terminated | 2 | DC | 26.50 | 0.60 | 65 | 20.00 | LM1849 | USB & Ethernet | |
| 35 | RC-3MTS-26 | DPDT | Transfer | 3 | DC | 26.50 | 0.50 | 70 | 5.00 | SH3143 | USB & Ethernet | |
| 36 | RC-4SPDT-A26 | SPDT | Terminated | 4 | DC | 26.50 | 0.54 | 65 | 20.00 | LM2795 | USB & Ethernet | |
| 37 | RC-8SPDT-A26 | SPDT | Terminated | 8 | DC | 26.50 | 0.60 | 65 | 30.00 | LM1852 | USB & Ethernet | |
| 38 | RCM-1SP8T-26 | SP8T | Terminated | 1 | DC | 26.50 | 0.30 | 70 | 5.00 | UV2068 | USB & Ethernet | |
| 39 | RCM-2SP8T-26 | SP8T | Terminated | 2 | DC | 26.50 | 0.30 | 70 | 5.00 | UV2068 | USB & Ethernet | |
| 40 | RC-1SP4T-A18 | SP4T | Terminated | 1 | DC | 18.00 | 0.25 | 80 | 20.00 | MR1853 | USB & Ethernet | |
| 41 | RC-1SP6T-A18 | SP6T | Terminated | 1 | DC | 18.00 | 0.40 | 100 | 20.00 | PF2320 | USB & Ethernet | |
| 42 | RC-1SPDT-A18 | SPDT | Terminated | 1 | DC | 18.00 | 0.25 | 85 | 40.00 | LM1848 | USB & Ethernet | |
| 43 | RC-2MTS-18 | DPDT | Transfer | 2 | DC | 18.00 | 0.20 | 86 | 10.00 | SH2618 | USB & Ethernet | |
| 44 | RC-2SP4T-A18 | SP4T | Terminated | 2 | DC | 18.00 | 0.25 | 80 | 20.00 | MR1937 | USB & Ethernet | |
| 45 | RC-2SP6T-A18 | SP6T | Terminated | 2 | DC | 18.00 | 0.40 | 100 | 20.00 | PF2018 | USB & Ethernet | |
| 46 | RC-2SPDT-A18 | SPDT | Terminated | 2 | DC | 18.00 | 0.25 | 85 | 40.00 | LM1849 | ||
| 47 | RC-3MTS-18 | DPDT | Transfer | 3 | DC | 18.00 | 0.20 | 86 | 10.00 | SH3022 | ||
| 48 | RC-4SPDT-A18 | SPDT | Terminated | 4 | DC | 18.00 | 0.25 | 85 | 40.00 | LM1851 | ||
| 49 | RC-8SPDT-A18 | SPDT | Terminated | 8 | DC | 18.00 | 0.25 | 85 | 40.00 | LM1852 | ||
| 50 | RCM-1SP12T-18 | SP12T | Terminated | 1 | DC | 18.00 | 0.60 | 80 | 20.00 | UV2068 | ||
| 51 | RCM-2SP12T-18 | SP12T | Terminated | 2 | DC | 18.00 | 0.60 | 80 | 20.00 | UV2068 | ||
| 52 | RCM-3SP4T-18 | SP4T | Terminated | 3 | DC | 18.00 | 0.50 | 80 | 20.00 | UV2068 | ||
| 53 | RCM-6SPDT-18 | SPDT | Terminated | 6 | DC | 18.00 | 0.30 | 66 | 20.00 | UV2068 | ||
| 54 | ZK-MSP2TA-18 | SPDT | Terminated | 1 | DC | 18.00 | 0.25 | 80 | 20.00 | FP2963 | ||
| 55 | ZK-MSP4TA-18 | SP4T | Terminated | 1 | DC | 18.00 | 0.25 | 95 | 20.00 | HJ3569 | ||
| 56 | RC-2MTS-12N | DPDT | Transfer | 2 | DC | 12.40 | 0.25 | 80 | 50.00 | SH3437 | ||
| 57 | RC-1SP6T-A12 | SP6T | Terminated | 1 | DC | 12.00 | 0.20 | 90 | 20.00 | PF2320 | ||
| 58 | RC-2SP6T-A12 | SP6T | Terminated | 2 | DC | 12.00 | 0.20 | 90 | 20.00 | PF2018 | ||
| 59 | RCM-1SP8T-12 | SP8T | Terminated | 1 | DC | 12.00 | 0.20 | 90 | 20.00 | UV2068 | ||
| 60 | RCM-2SP8T-12 | SP8T | Terminated | 2 | DC | 12.00 | 0.20 | 90 | 20.00 | UV2068 | ||
| 61 | ZK-MSP6TA-12 | SP6T | Terminated | 1 | DC | 12.00 | 0.20 | 90 | 20.00 | HJ2964 | ||
| 62 | ZK-MSP8TA-12 | SP8T | Terminated | 1 | DC | 12.00 | 0.20 | 100 | 20.00 | HJ3570 | ||
| 63 | RCM-3SPDT-75F | SPDT (75ā¦) | Terminated | 3 | DC | 2.15 | 0.60 | 70 | 0.10 | UV2068 |
Fill out the form if you need help choosing a part, need samples or if you have any questions, and we will get back to you as soon as possible.
The mechanical switch matrix line covers DC up to 67 GHz. Benchtop modules span from low-frequency 75-ohm units (the RCM-3SPDT-75F, DCā2.15 GHz) all the way to the RCMX-2SP6T-E67, a latching SP6T covering DCā67 GHz. The RCMX “E” series fills the millimeter-wave range with models at 32.5, 42.5, 52.5, and 67 GHz, while rack-mount systems reach up to 40 GHz. This lets you match a routing solution to almost any test band, from HF through E-band.
The RCMX-2SP6T-E67 is the highest-frequency module in the catalog ā a terminated SP6T latching switch covering DCā67 GHz, with 1.5 dB typical insertion loss, 70 dB typical isolation, and 1 W power handling. For applications just below that, the RCMX-2SP4T-E53 reaches 52.5 GHz and the RCMX-2SP8T-E43 reaches 42.5 GHz. These extended-frequency modules are designed for millimeter-wave test setups such as 5G mmWave, radar, and satellite work.
The RC-2MTS-12N leads on power handling at up to 50 W ā a DPDT transfer switch covering DCā12.4 GHz with just 0.25 dB typical insertion loss and 80 dB isolation. For higher frequencies, several SPDT modules handle up to 40 W (the RC-1SPDT-A18, RC-2SPDT-A18, RC-4SPDT-A18, and RC-8SPDT-A18, all DCā18 GHz), and the RC-8SPDT-A26 handles up to 30 W at DCā26.5 GHz. Higher-frequency millimeter-wave modules trade power for bandwidth, typically handling 1ā5 W.
The catalog covers SPDT, SP4T, SP6T, SP8T, SP12T, and DPDT transfer (MTS) configurations, including latching and 75-ohm variants. The highest single-switch throw count in the benchtop range is SP12T ā the RCM-1SP12T-18 and RCM-2SP12T-18 (DCā18 GHz). SP8T options span DCā12 GHz up to DCā42.5 GHz, and transfer switches are available with two or three switches per unit (up to the RC-3MTS series). This breadth means most routing topologies can be built from stock.
Benchtop modules hold anywhere from one to eight switches in a single housing. For example, the RC-8SPDT-A18 packs eight SPDT switches (DCā18 GHz, 40 W each) into one unit, and the RC-8SPDT-50 provides eight SPDT switches up to 50 GHz. Multi-switch modules let you route several independent signal paths from one compact, software-controlled box rather than stacking separate units.
Yes. While most modules use USB and Ethernet control, the ZK series offers direct TTL control for integration into hardware-driven test systems ā including the ZK-MSP2TA-18 (SPDT, DCā18 GHz), ZK-MSP4TA-18 (SP4T, DCā18 GHz, 95 dB isolation), ZK-MSP6TA-12 (SP6T), and ZK-MSP8TA-12 (SP8T, DCā12 GHz, 100 dB isolation). Among the rack systems, the ZT-375-TTL also provides TTL control. TTL is useful when you want the switch driven by digital logic lines rather than a software interface.
Yes. The RCM-3SPDT-75F is a 75-ohm terminated SPDT module with three switches, covering DCā2.15 GHz with 70 dB typical isolation. Most RF switches are 50-ohm, so this 75-ohm option is specifically suited to video, CATV, and broadcast signal-routing applications where 75-ohm impedance is the standard. MCDI can advise if your test setup requires 75-ohm matching throughout.
The rack-mount range builds very high port-count switches from multiple elements. The ZT-315 implements a single SP40T switch (DCā18 GHz, 3U), the ZT-166 implements an SP32T (DCā18 GHz, 4U), and the ZT-SP36T-12A implements an SP36T (DCā12 GHz, 4U). At millimeter-wave, the ZT-14SP6T-40 provides two SP36T switch functions up to 40 GHz in a 6U chassis. For high switch counts, the ZT-310 holds 32 DPDT switches and the ZTM2-24SPDT-18 holds 24 SPDT switches.
Rack systems range from 1U to 6U and offer SMA, 2.92 mm, and N-type connectors. Compact 1U options include the ZTRC-4SPDT-A18 and ZTRC-4SPDT-A26 (SMA) and the ZT-317, which uniquely uses rear-panel N-type connectors up to 18 GHz. The 40 GHz millimeter-wave systems ā such as the ZT-14SP6T-40, ZTM2-8SP8T-40, and ZT-6SP6T-40 ā use precision 2.92 mm connectors. Connector grade is matched to frequency to preserve signal integrity at higher bands.
Yes. For large arrays, the ZT-310 (32 DPDT switches) and the ZT-16SPDT-A18 (16 SPDT switches) support USB, LAN, and daisy-chain control, letting multiple units be linked and managed over a single connection. For applications needing power redundancy, the ZT-2SP6T-12DPS is built with a dual power supply. These features support large, always-on automated test racks where reliability and simplified control matter. MCDI’s engineers can help configure the right system for your setup.
